Multi Purpose Controller

$189.50

This is a very versatile multifunction temperature controller for household to have. It can be used for cooking sous vide (with a slow cooker or rice cooker), controlling a electric smoker, making yogurt, proofing dough, control the temperature of a table top toaster oven, converting a freezer to a low temperature incubator for beer formation or sour dough yeast storage.

This controller is essentially the same controller as our “Sous Vide Cooking Controller, Deluxe (model WS-1500E) ” except the following difference. 1) it has 6 steps programmable temperature setting for cooking that needs to be started at one temperature and finished at another. It is a useful feature for electric smoker. 2) The cable of standard temperature probe for this model is three conductors, 6 ft long. (It is the same sensor as PT100S except a three pin connector is installed.) It is can be used for either sous vide cooking or smoker control. If you prefer the probe for sous vide controller only (it has a thin and short cable) please select the option in the bottom of this page. If you need a smaller thermal mass probe for fast air temperature control, or a probe for a high temperature range application (450-750F or 250-400C), please contact us.

The general guideline on whether an appliance can be controlled by this controller is, 1) it is for heating and cooling. 2) it draws not more than 15A at 120VAC. 3) it does not have its own digital electronic controller. 4) It will start to work when the on/off switch is on, without the need for pressing any other keys. If you are not sure this controller can be used for your application, just ask us by sending an email to info@auberins.com

Features

Plug-n-play unit complete with sensor and power cord. Simple to use.
PID algorithm control with one degree precision and stability.
Built-in solid state relay for long lasting and noise free power switching.
15 Amp power switching capability that meets the maximum allowed amperage for household power socket
High sensitivity sensor constructed with material safe for food cooking.
Thin (0.7 mm or 0.030") and flexible sensor cable that allow the sensor to be placed directly in the pot without affecting the closure of the cooker cover
Built-in timer that will shut down the cooker and generate a beeping sound when timer end.
Auto-tune function that can be easily adapted to cookers with unknown thermal response character
Display temperature in either Fahrenheit or Celsius.
Thick strong aluminum extrusion chassis that is durable, splash proof, and looks nice on the kitchen counter.

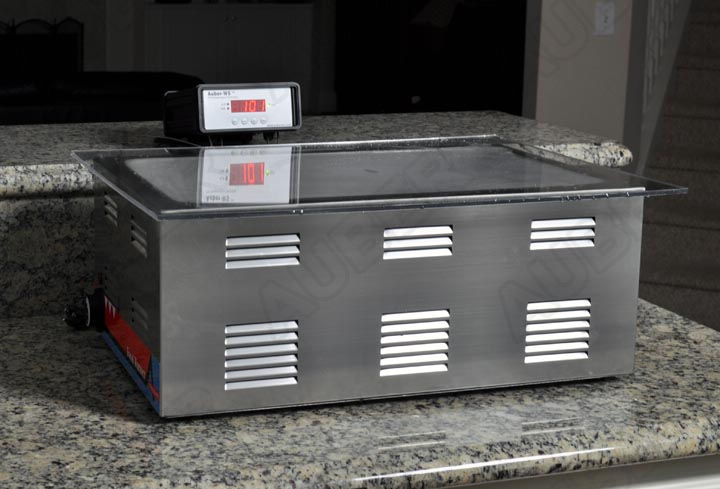

Controlling a steam table for making sous-vide. Click here for recommended sous-vide cooking equipment.

Back view of the controller.

Specifications

Input voltage: 100 to 240 VAC 50 /60 Hz

Output voltage: Same as the input.

Maximum Current: 15A.

Fuse Size: 15A Fast blow.

Control Action: Heating (reversed action) or cooling (direct action)

Control Mode PID, PI, PD P or On/off

Output switching device: Built-in optically isolated solid state relay with zero voltage crossing switching.

Sensor type: Three conductors Pt100 RTD sensor

Sensor tip dimensions: 4 mm diameter x 50 mm long.

Sensor cable length, 6 ft (2 meters)

Alarm: High limit alarm and Open loop alarm with LED and buzzar.

Timer Range: 1 to 9999 minutes for each step. 6 steps total.

Temperature resolution: 1 °C or 1 °F

Temperature display range: -50 to 400 °C or -58 to 752 ° F

Temperature accuracy: 1°C (1°F),

Dimension: 6x3x7.5 inch (155 x80x190 mm) W x H x D.

Weight: 2.9 lb (1.5 kg)

Warranty: 1 year for controller and sensor.

Shipping and Handling is $16 for all US address and $27 for international address.

Notes for customer outside North America,

This controller has US input plug and output socket that meet the NEMA 5-15 standard. For international order, user can get a converter from local electronics store to convert the connection.
For countries that use 220-240VAC power line, the maximum control power of this controller is 3300 Watts.
