Precision Temp controller, Incubator, Sous-vide

This plug-and-play temperature controller can be used for controlling the temperature of application that needs very high precision such as incubators, aquariums and biological experiments equipments. It can also be used for controlling the temperature of rice cookers for sous-vide cooking.  To operate, plug the heater (or lamp) to the socket of the controller on the back, drop the sensor into the container, and turn on the power of controller.

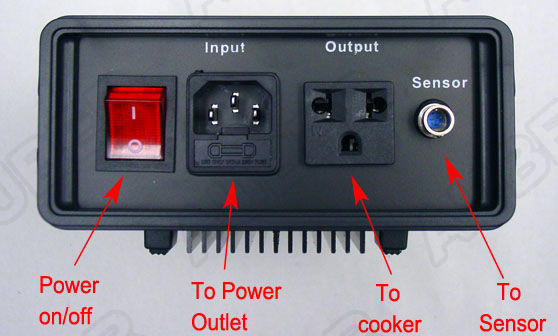

 Back view of the controller.

Application examples:

1) Holding the temperature of an 45 litter ice cooler at 37.0 °C with a 40 watts light bulb



2) Holding the temperature of an rice cooker at 64.5 °C for making the "perfect egg".

Specifications:

Input voltage	100 to 240 VAC 50 /60 Hz
Output voltage	Same as the input.
Maximum Current	15A at 120V,  10A at 240V
Fuse Size	15A Fast blow
Control Action	Heating (reversed action) or cooling (direct action)
Control Mode	PID, PI, PD P or On/off
Output switching device	Built-in optically isolated solid state relay with zero voltage crossing switching
Sensor type	Pt100 RTD sensor
Sensor tip dimensions	4 mm diameter x 50 mm long
Sensor cable length	3 ft (900 mm)
Alarm	High limit alarm and Open loop alarm with LED and buzzer.
Timer Range	1 to 9999 minutes
Temperature resolution	0.1 °C or 0.1 °F
Temperature range	-50 to 400 °C or -58 to 752 °F
Temperature accuracy	+/- 0.1°C or 0.2 ° F at 0.0 to 85 ° C ( 32.0 to 185.0 ° F)
Dimension	6x3x7inch (155 x80x180 mm) W x H x D
Weight	3.0 lb (1.5 kg)

Warranty:  1 year for controller and sensor

Click here to download instruction manual

Notes for customers outside North America:

• The "universal" output socket accepts either US power cord or the European CEE 7/7 cord.
• For European customers, we will ship the controller with European CEE 7/7 power input cord.
• For other countries, a US power cord is included. User can splice the connector of the cord to a power strip outlet that meets the local standard for the output.  For the input, the controller has standard IEC 320 C13/14 socket. User can use a computer power cord that meets the local standard to power it.
• There's an optional Travel Plug Adapter on the top of this product page. Please select it if you need this plug adapter.



• For countries that use 220-240VAC power line, the maximum control power of this controller is 2400 Watts.

Contact us if you want a different type of sensor for your application.
