The CP51 is a 240V control panel with up to 50 Amps total output capability. It has multiple controller options and can work for a variety of applications.
Features:
- Single 240V/50A max output capacity
- Enclosure with 1/2" Knockouts for easy connection.
- Controller with either PID algorithm or artificial intelligence algorithm.
- Two line display that shows both the set temperature and actual monitoring temperature.
- Displays temperature in either Fahrenheit or Celsius.
- Mini 2-in-1 Volt and Amp meter for displaying system power level.
- Solid State Relay (SSR) for long lasting, fast and noise free power switching.
- Contactor for completely cut off power to the element.
- Strain-relief power cord connector for hard-wiring the power line.
- Assembled in U.S.
- US seller & US support team. This control panel is designed and manufactured by Auber Instruments. Copyright © Auber Instruments.
Controller module options:
a) Standard single set point general-purpose PID:
SYL-2352
b) Ramp & Soak PID:
SYL-2352P
c) Basic mash & boil EZboil
® controller:
DSPR120
d) Advanced step mashing EZboil
® controller:
DSPR320A
e) Bluetooth advanced LCD PID controller:
N20K48
Sensor connection options:
Default sensor connection option is hardwiring. If you need a detachable receptacle for the sensor, please select the right type. No sensor nor sensor cable is included with this panel.
Front View. SYL-2352 installed

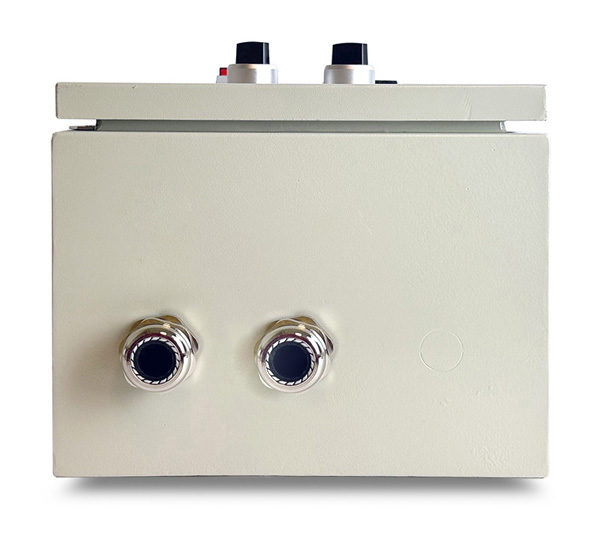

Bottom View (sensor option: hardwiring)

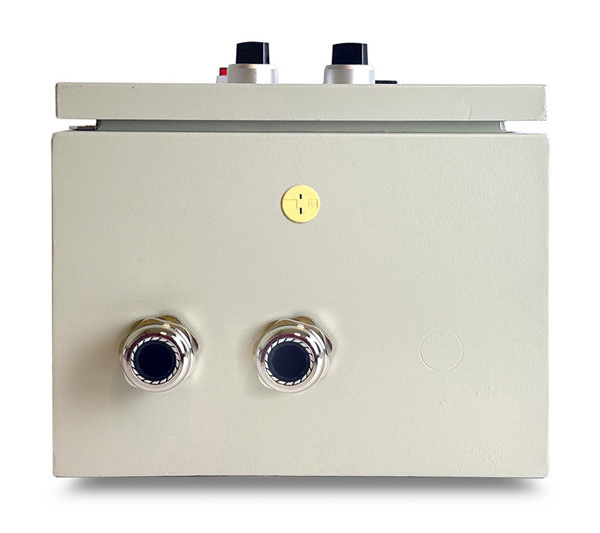

Bottom View (sensor option: thermocouple)

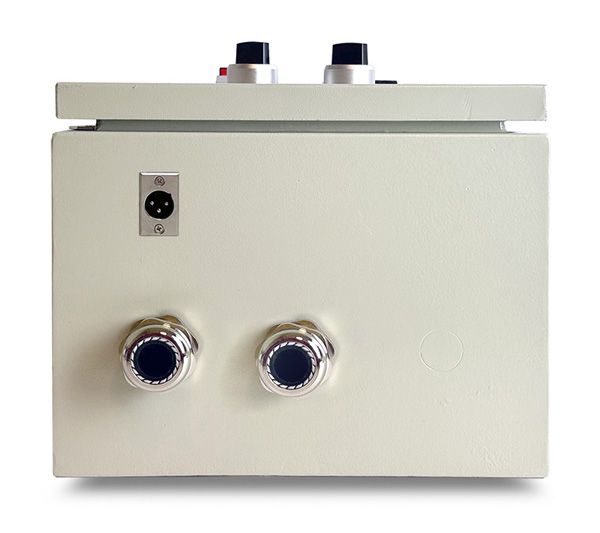

Bottom View (sensor option: XLRCON-M, for PT100 RTD)
Side View
Note:
1. The control panel is designed for 240V single phase power. Please verify your power supply before purchase. Input power cord is not included.
2. This control panel has one output channel, which is rated 50A/240V max.
3. Environment humidity is less than 85% RH.
4. This control system is designed for heating elements (resistive load) only, not for valve or other types of load. Heating element is not included.
5. Sensor is not included.
6. Two PCCON connectors are included. One is for the power input cord and another is for the power output cord.
7. Warranty: One (1) year limited warranty.
8. Lead time for this product is 4-5 business days. Please contact us if you have any other questions.
