This CP53 control panel needs to be powered by two different 240V/25A circuits (L1#1, L2#1, L1#2, L2#2). This panel has two 240V/25A output. It has multiple controller options and can work for a variety of applications.
Features:
- This panel needs to be powered by two separate 240V 25A circuits. No need for a new, 50A thick power input cord.
- Dual output channels. 240V/25A max each channel.
- Two 1/2 EMT fittings are included for easy connection.
- Controller with either PID algorithm or artificial intelligence algorithm.
- Two line display that shows both the set temperature and actual monitoring temperature.
- Displays temperature in either Fahrenheit or Celsius.
- 2 pcs Mini 2-in-1 Volt and Amp meter for displaying system power level. One for each 240V circuit.
- Solid State Relay (SSR) for long lasting, fast and noise free power switching.
- Contactor for completely cut off power to the element.
- Strain-relief power cord connector for hard-wiring the power line.
- Assembled in U.S.
- US seller & US support team. This control panel is designed and manufactured by Auber Instruments. Copyright © Auber Instruments.
Controller module options:
Sensor connection options:
Default sensor connection option is hardwiring. If you need a detachable receptacle for the sensor, please select the right type. No sensor nor sensor cable is included with this panel.

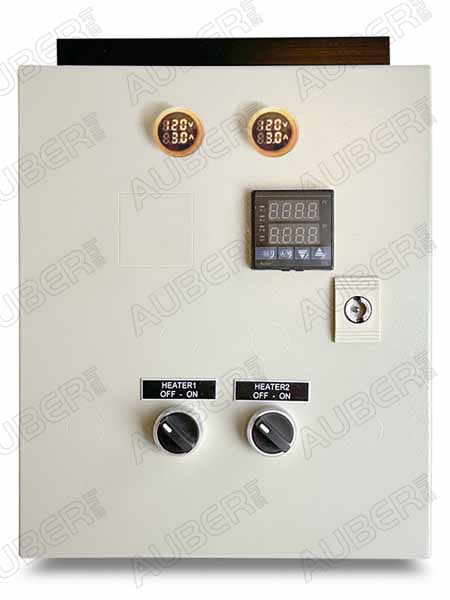

Front view. SYL-2352 installed
Bottom View (sensor option: hardwiring)

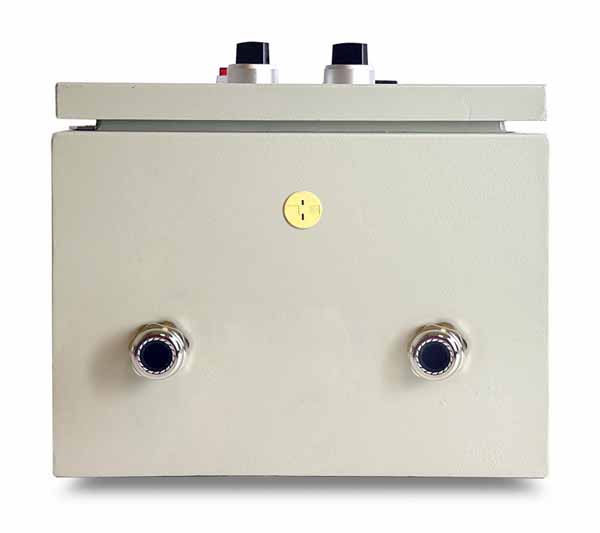

Bottom View (sensor option: thermocouple)

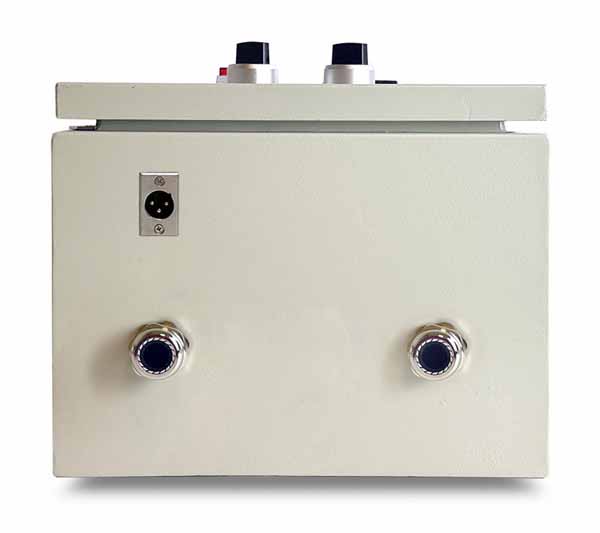

Bottom View (sensor option: XLRCON-M, for PT100 RTD)

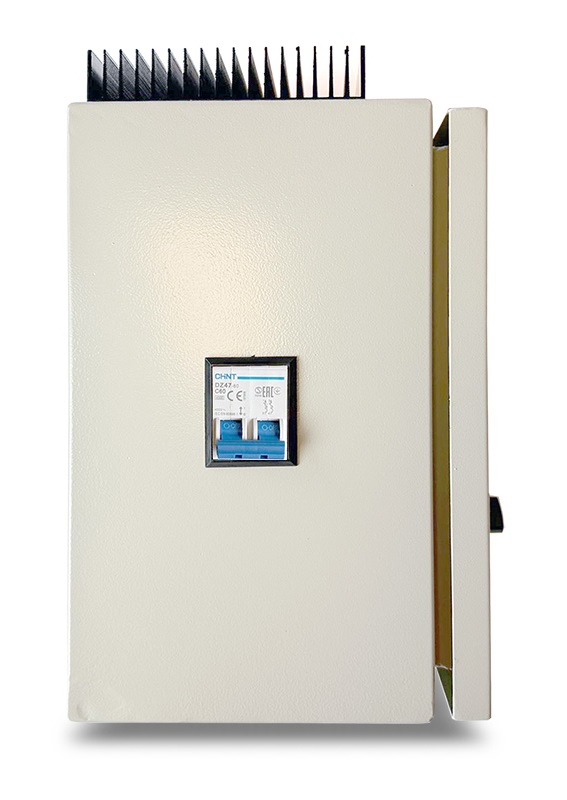

Right Side View (2P 32A Breaker for Ch#2)
Left Side View (2P 32A Breaker for Ch#1)
Note:
1. The control panel is designed for 240V single phase power. A total of 6 power input wires are needed: L1#1, L2#1, Ground#1, L1#2, L2#2, Ground#2. Neutral wire is not needed.
2. This control panel has two output channels. Each channel is rated 25A max. Total is 50A max. This control panel cannot drive one single element over 25A.
3. Environment humidity is less than 85% RH.
4. This control system is designed for heating elements (resistive load) only, not for valve or other types of load. Heating element is not included.
5. Sensor is not included.
6. If you need buzzer and alarm control, please see our PCO304 for K thermocouple and STL201 for PT100 RTD sensor.
7. Warranty: One (1) year limited warranty.
8. Lead time for this product is 4-5 business days. Please contact us if you have any other questions.
