Dual-channel 25A AC SSR with Screw Terminals

(image for) Dual-channel 25A AC SSR with Screw Terminals
Dual-channel 25A AC SSR with Screw Terminals
  • Model: SRDA25-2C-C

(image for) Ask a Question

Starting at: $32.00

Please Choose:

Accessories




Add to Cart:

This compact dual-channel solid-state relay (SSR) features two independent outputs for switching AC loads up to 25 A per channel at 24–480 VAC. Each channel accepts a 3–32 VDC control signal. A clear protective cover is included for safety and protection.

This is also a replacement part for KIT-RSPc. It does NOT directly replace the SSR in KIT-RSPb.

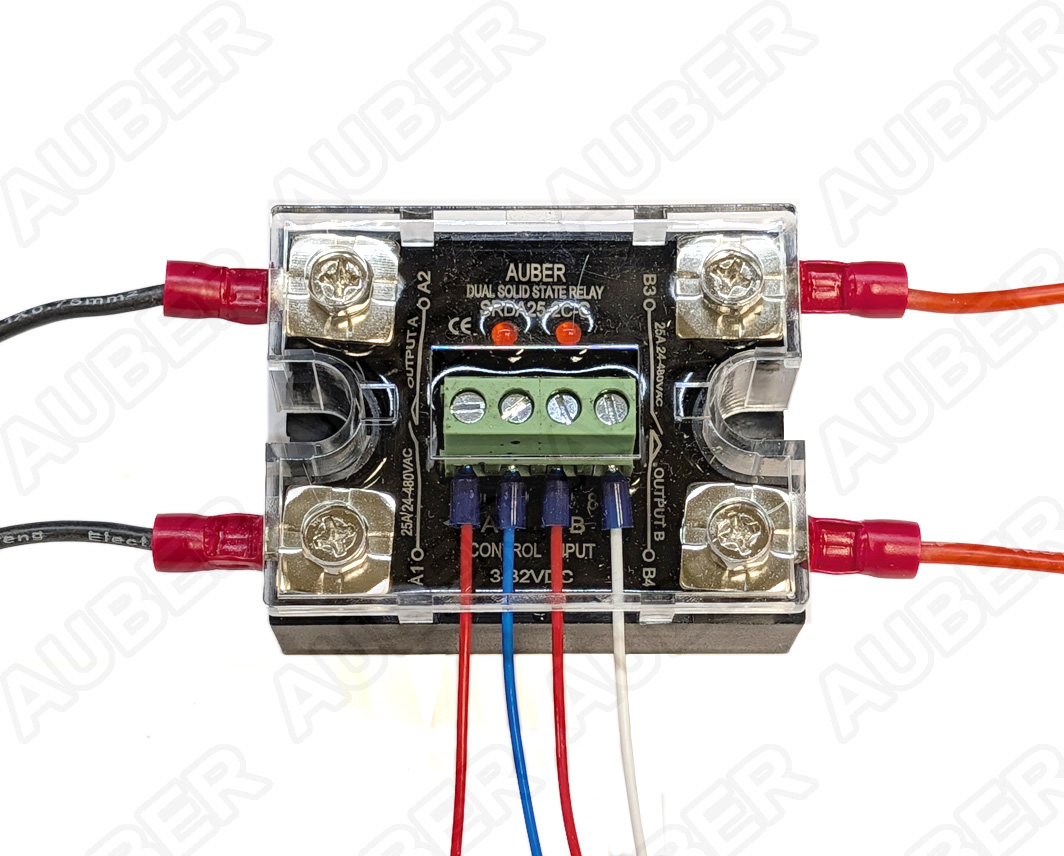

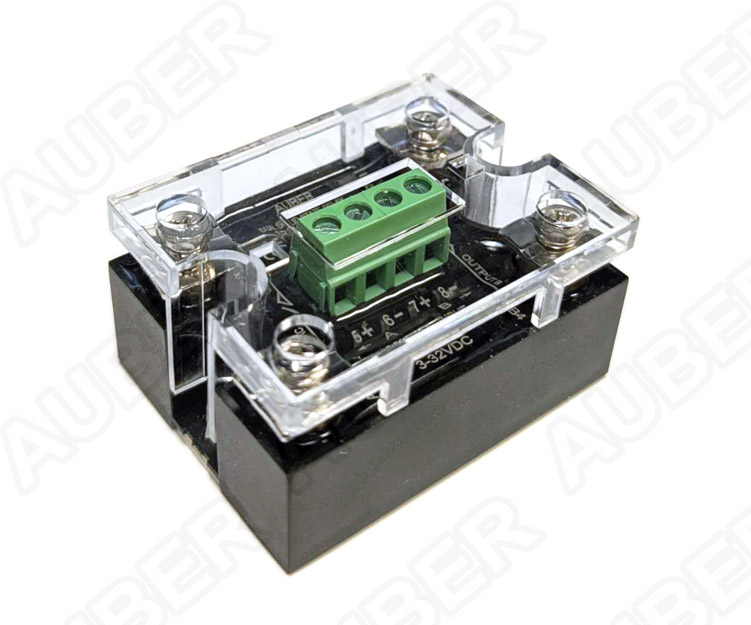

SRDA25-2C-C comes with a protective cover. Wiring example of SRDA25-2C-C.



Specifications

Description Dual-channel 25A SSR
Manufacture AUBER
Control Voltage 3 -32 VDC for each channel
Control Current DC 3 - 25 mA
Operating Voltage 24 - 480 VAC, 50/60 Hz
Current Rating 25 A for each channel
Output TRIAC
On Voltage ≤ 1.5 V
Off Leakage Current ≤ 2 mA
On-off Time ≤ 10 mS
Dielectric Strength 2500 VAC
Insulation Resistance 1000 MΩ / 500 VDC
Ambient Temperature -30℃ - +75℃
Switch Method zero-crossing turn-on
Dimensions 2.25 x 1.75 x 1.25 (inches) , 57 x 32 x 45 (mm)
Screw Size (Output Terminals)  Metric M4
Weight 90 g
Approval CE
Warranty 90 days


Note: SSRs typically need to be mounted on a heat sink to dissipate heat. For more information, please see this link.
