Mini Power Relay SPDT 120V 30A, Economical

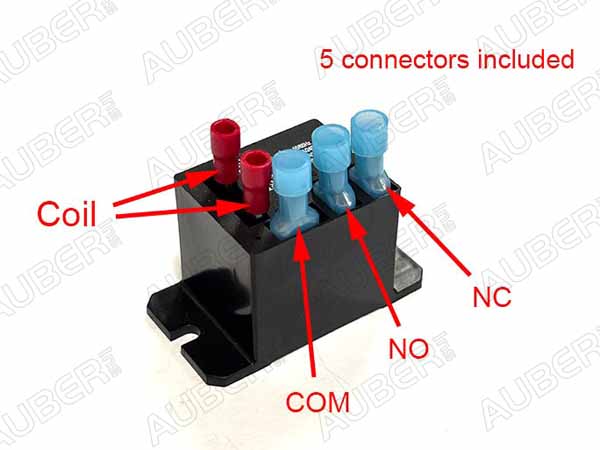

This economical relay provides a simple and economical solution for switching any size 120V operated heater or motor. It is single pole, compact, C-form (one normal open, NO, and one normal close, NC), 110/120VAC coil voltage, and rates up to 30A of load (see spec below). It is shipped with 5 insulated connectors as shown in the picture.

Compared to ice cube relays, this relay is more compact and epoxy sealed. All the connections are recessed. When connected with insulated connectors, it can be operated outside of the controller box.

Compared to using an SSR, the advantage of this relay are its compact size, no need for heat sink, no heat dissipation issue, real dry cut off and economical price. The disadvantage is limited life time and having to be switched at lower frequency than the SSR. If you don't need super high precision control (within 1 degree) and don't mind a small clicking sound, this relay is a better choice than the SSR.

For wholesale customers, please contact us.

Specifications
