External-Mount Heat Sink for Single Phase 100A or 3 Phase 80A SSR

The externally mounted heat sink eliminates the venting requirement of enclosures with internally mounted heat sinks. It is more efficient and keeps the inside of the controller box free from dust. This heat sink comes with pre-drilled and tapped mounting holes for SSRs (see details below). Mounting screws and thermal conductive grease are included. The heat sink is shipped with SSR mounting screws and heat-conductive grease.



Note: To use this heat sink with single channel SSR(s), this heat sink fits the top heat sink opening from B404020 series box. Up to three single channel SSRs can be mounted.

This heat sink also has pre-drilled mounting holes for one 3-phase SSR or SSVR (SSVR40A-LIN), but it is not compatible with the top opening of B404020 series box.

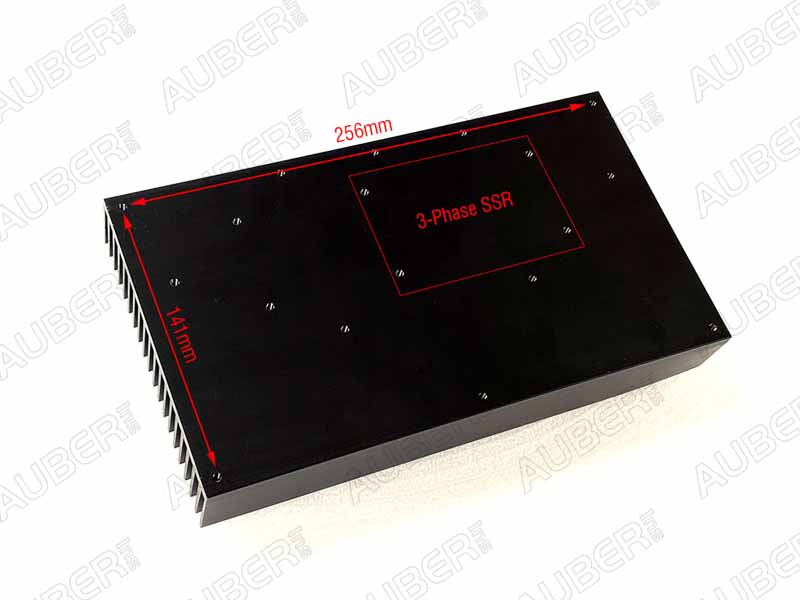

BHS100A Dimensions
