Square Flange Panel-Mount Connector for Sensors

This is a high-quality push-and-pull-style connector used on our liquid-tight RTD sensors (3-pin only). Its gold-plated contact pins are low in resistance, making it not only suitable for handling AC current up to 5 Amps, but also good for connecting sensors such as PT100 RTD sensors. The spring-lock on the plug can prevent it from being accidentally pulled out. The compression nut and clamping ring of the connector plug accommodate cables with diameters from 7.5 mm to 8.3 mm. The body of the connector is zinc alloy with nickel plating, which gives users a solid and smooth feel when holding it in their hand.

This connector is compatible/interchangeable with the RTDCON connector used on our liquid-tight probes and braided cables.

Currently, 3-pin and 4-pin connector pairs are available. The plug is the female connector for the cable, and the square flanged receptacle is the male connector for the panel. Connectors in other configurations or with a different number of pins are available upon request.

Recommended mounting screw: four sets of metric M2 x 7 mm screw and nuts. Please note that mounting screws are currently not included in this listing.

Note: This 4-pin connector is NOT the one we used in our customized 4-pin probe & cables, including PT100-TP, PT100-TP-C and Cable-braided-TP. For questions, please contact us.

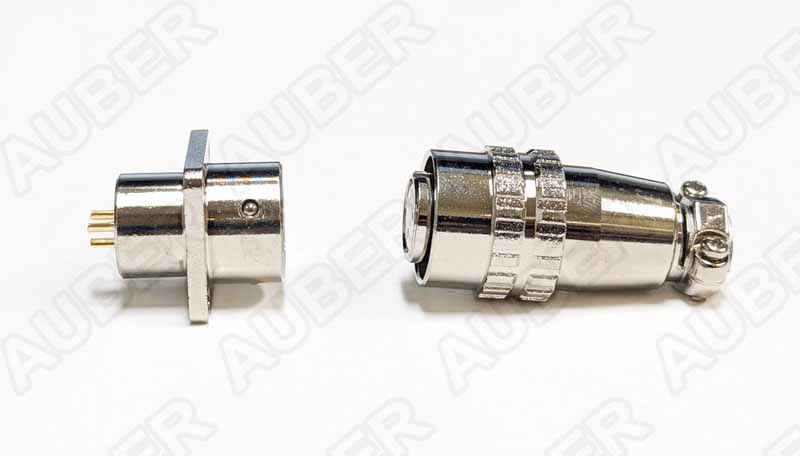

Shown in the picture: panel mount connector socket (left) and connector plug (right).

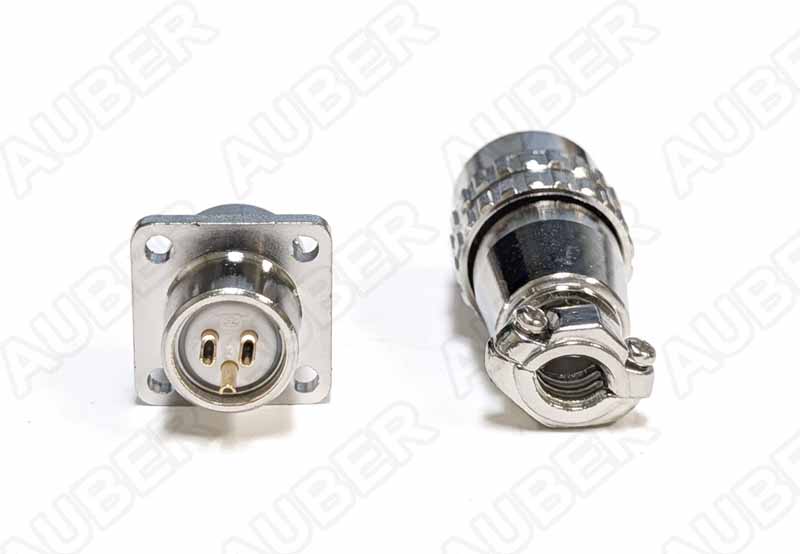

The rear view of the connector pair shows the soldering pins and the cable grip.

Specifications:

[PDF] P2CON-XS12 Wiring Guide for Auber PT100 Probes
