New product introduced!
This is a compact, intelligent PID temperature controller that features a built-in TRIAC capable of switching small AC loads up to 250W. It is well-suited for applications such as small heaters, lamps, small AC valves/solenoids, or small mechanical relays. As it eliminates the need for an external solid-state relay (SSR), it is especially suitable for applications where space is limited.
This controller shares similar features and a menu system with our
SYL-1512A, and it is compatible with 10 different types of temperature sensors.
Features:
- Compact size, 1/32 DIN that is only 24 mm x 48 mm x 75 mm (0.95" x 1.89" x 3").
- Built-in SSR (TRIAC) for direct switching of a small AC load that consumes less than 250W.
- On/off control mode non-resistive load (such as solenoid valves or small pumps).
- Artificial intelligence-enhanced PID algorithm provides precise control.
- The auto-tune function can automatically find the best PID parameters.
- Displays temperature in either Fahrenheit or Celsius.
- 6-month limited warranty. See details here.
LED colors: Two LED display colors are currently available: red and blue. Other LED colors (green or white) may be available upon inquiry.
 |
 |

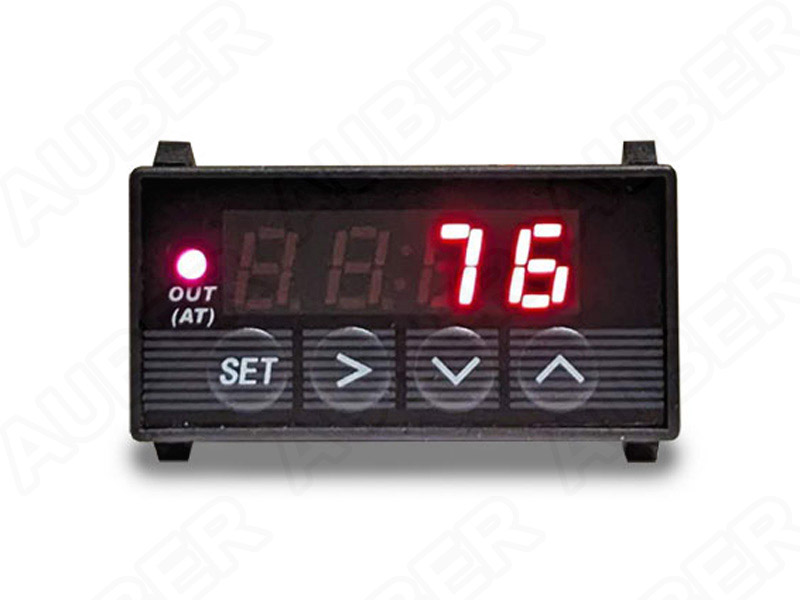

| SYL-1507-R (red LED display) |

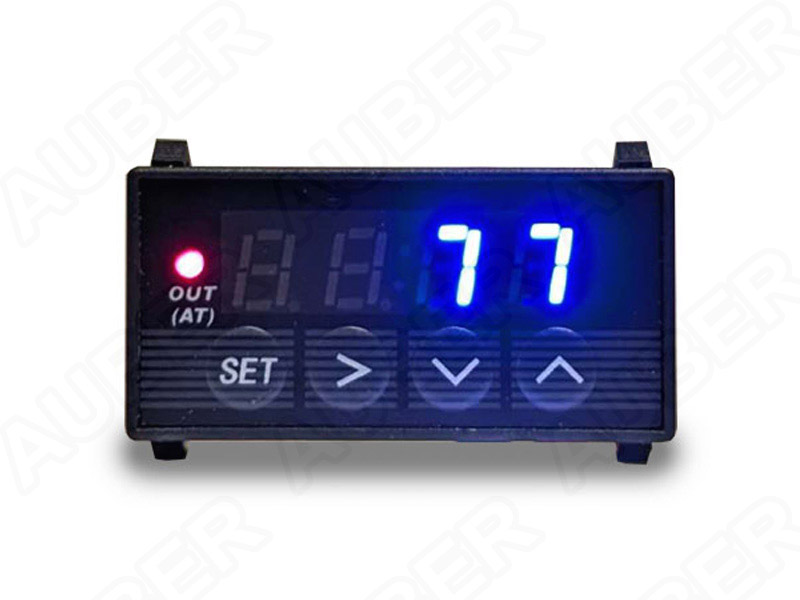

SYL-1507-B (blue LED display) |
Main Specifications
| Input Sensor type |
Thermocouples*: K, E, S, R, J, T, B, WRe3-WRe25
RTDs: PT100, Cu50 |
| Input Range |
K (-200 ~ +1300ºC), S (-50 ~ +1600ºC), WRe3-WRe25 (0 ~ 2300ºC ), R (-50 ~ +1600ºC), T (-200 ~ 400ºC), E (-200 ~ 900ºC), J (-200 ~ 1200ºC), B (350 ~ 1800ºC), PT100 (-99.9 ~ 600.0ºC) or PT100 (-200 ~ +600ºC), Cu50 (-50 ~ 150ºC) |
| Display |
One-line, 0.28" digital LED, 4 digits |
| Display Resolution |
1°C, 1°F, or 0.1°C, 0.1°F, with PT100 |
| Input Accuracy |
±0.2% or ±1 unit of the full input range |
| Control Mode |
PID, ON/OFF |
| Power Output |
Less than 250W at 85 ~ 260 VAC |
| Output Voltage |
Matches the input voltage. |
| Controller Power Consumption |
Less than 6W. |
| Power Input |
85 ~ 260 VAC / 50~60 Hz |
| Dimensions |
24 mm x 48 mm x 75 mm (1" x 2" x 3") |
| Terminal Screw Size |
Metric thread, M3-0.5 |
| Working Environment |
0 ~ 50°C, less than 85% RH |
* Thermocouples are cold-junction compensated to 0°C (32°F).
[PDF] SYL-1507 Instruction Manual
Note:
1. The letter "R" or "B" in the model numbers "SYL-1507-R" and "SYL-1507-B" indicates the LED display color, red or blue.
2. This controller doesn't have a dry relay contact output.
3. This is NOT a replacement PID controller for our coffee machine kits.
This product was added to our catalog on Friday 25 July, 2025.
