The PCO404 is a standard 50A turn-key control panel for the powder coating oven with light and fan control features. It allows you to run heating elements up to 12,000W. It includes both temperature control and timer counting features, so users can cure the parts in the oven at the set temperature over a certain amount of time. This maximizes the finishing quality and minimizes coating time, resources and effort spent on building a control box. With the help of this control panel, your curing process can be easier and simpler.
If you do not need light & fan control, please go to PCO304.
Feature:
- Powder coated wall-mount enclosure with 1/2" Knockouts on the bottom, side and back.
- Dual-line display PID controller with high temp alarm feature.
- Independent timer read-out with finishing alarm feature.
- Oven temperature probe w/ mounting screws (both the sensor and cable are rated for 900ºF).
- Separate temperature alarm and timer alarm with flashing buzzers and optional red indicator.
- Mini digital volt and amp meter to show system power.
- Illuminated 22mm switches for intuitive operation.
- Independent SSR and contactor for each heater outlet.
- Two independent controlled 120V outlets for light and fan.
- Side-mount breaker switch for overcurrent protection.
- US seller & US support team. This control panel is designed and manufactured by Auber Instruments. Copyright © Auber Instruments.
Description:
This control panel is built with some of the most popular components Auber Instruments has to offer to the metal finishing enthusiasts. With the PID controller SYL-2352, the user can directly change the set temperature by using the up and down arrow keys (view/change other system parameters by holding SET key for 2 seconds). The timer JSL-74 has only a few parameters to set up; if a door needs to be opened during a batch, one can use a pause or stop key to interrupt the timer. When the batch is finished, the coating process can be started again by pressing the reset button.
When the set temperature is reached, one can shut off one of the heaters to hold the temperature. The heater switches are connected to contactor coils. So once they are turned to OFF position, the heater outlet will be powered off completely by the contactor. Meanwhile, system performance is enhanced by SSR (Solid State Relay). When the heater switch is turned to ON position, the PID controller will provide power to the element via SSR which will take action in only 2 seconds.

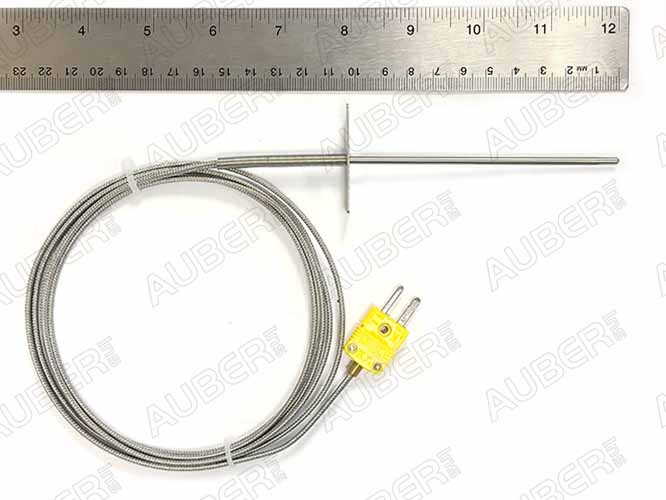

The sensor provided in this control panel is our
TC-K3MM. It is suitable for low oven application and can handle up to 900 degree F. The 1/8" diameter probe offers a good balance between the fast response time in the air and reasonable mechanical strength. The base of the probe is made of a 0.55" (15 mm) long 5/16"-24 screw for easy mounting. The probe is 4" long and 1/8” (3.0 mm) diameter made of stainless steel with a plated brass base. Default sensor cable length is 6 ft (2m), optional longer cable length 11 ft (3.5m) is also available.
Specifications
| Heater Control Output |
30A, 240VAC maximum. |
| Light/Fan Control Output |
5A, 120VAC maximum. |
| Input Connection |
50A, four conductors. |
| Sensor |
K Type Thermocouple sensor, spade connector. |
| Circuit Breaker |
2P 60A. |
| Temperature Controller |
SYL-2352 |
| Timer |
JSL-74 |
| Dimension (W x H x D) |
12 x 10 x 8 inch (30 x 25 x 20 cm) |
| Weight |
16 lb (7.25 kg) |
| Warranty |
One (1) year limited warranty. See here for details |
Note:
- The control panel is designed for North America 240V AC power lines which require four line power connections (L1, L2, Neutral and Ground). Please verify your power supply before purchase.
- This control system is designed for heating elements (resistive load) only, not for gas burners or propane heaters. If you want to use the system for a gas burner or other types of heater, please contact us before purchase; otherwise, your purchase may not be covered by our warranty.
- Default sensor cable length is 6 ft (2m), optional longer cable length 11 ft (3.5m) is also available. If you need a longer sensor cable, please contact us.
- The input power cord (SOOW 6/4) is not included because each user may have different hook up requirements.
- The heating element is not included.
- Scratch & Dent version is available here.
- For a KIT kit version of this panel, please check here.
- Lead time is about 2-3 business days.
- PCO402 Control Panel (Enclosure with Minor Defects) is limited stock here.
- Protection plan for this kit is available here.
